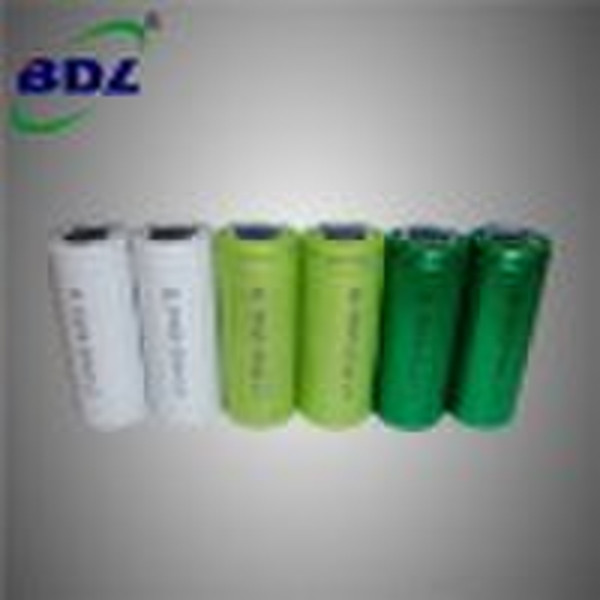

26650 (IFR/ IMR/ ICR)

Item IFR26650 NominalCapacity 3000mAh Nominal /CutoffVoltage 3.2V/2.0V MaxCharge/Discharge Current 3C/5C DischargeRate 3C InternalResistance ≤35mΩ Cyclelife 2000 ChargingMethod CC/CV EnergyDensity 127wh/kg SelfDischarge ≤5% CellDimension 26*65mm Weight 83g Temperature Charge:0°C 60°C32°F 113°F Dischage:-20°C 75°C-4°F 140°F Storage:-20°C 45°C-4°F 113°F Use ElectricTools,ElectricVehicles,ElectricBicycles Item IMR26650 NominalCapacity 3500mAh Nominal /CutoffVoltage 3.7V/2.75V MaxCharge/Discharge Current 3C/5C DischargeRate 3C InternalResistance 35mΩ Cyclelife ≥500 ChargingMethod CC/CV EnergyDensity 141wh/kg SelfDischarge ≤10% CellDimension 26*65mm Weight 92g Temperature Charge:0°C 60°C32°F 113°F Dischage:-20°C 75°C-4°F 140°F Storage:-20°C 45°C-4°F 113°F Use DigitalProducts,EnergyStorage Item ICR26650 NominalCapacity 4400mAh Nominal /CutoffVoltage 3.6V/2.75V MaxCharge/Discharge Current 3C/5C DischargeRate 3C InternalResistance 50mΩ Cyclelife ≥500 ChargingMethod CC/CV EnergyDensity 176wh/kg SelfDischarge ≤10% CellDimension 26*65mm Weight 90g Temperature Charge:0°C 60°C32°F 113°F Dischage:-20°C 75°C-4°F 140°F Storage:-20°C 45°C-4°F 113°F Use DigitalProducts,EnergyStorage
